| Primary Adapter | C8-socket |
|---|---|
| Frequency | 50-60 Hz |
| Efficiency (%) | 90% typ. at full load |
| EMC | EN55011, EN 55022/B, IEC 60601-1-2 FCC47 Part 15, EN61000-3-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11 |
| Output tolerance (%) | ± 2% |
| OPERATING TEMPERATURE | 0°C - 40°C |
| STORAGE TEMPERATURE | -40°C - 70°C |
| Humidity (%) | 5% to 95% non condensing |
| Standards | IEC 60601-1, ES 60601, UL 2601 |
| MTBF | 200.000 hours |
| Leakage current (μA) | ≤ 10 μA |
| Short Circuit Protection | Continuously short circuit proof |
| Output Connector | FRIWO Universal plug systemoutput |
| IP class | IP 40 |
| ON diode | Yes |
| Protection class | Class ll |
| Means of protection | 2xMOPP |
| Medical Approved | Yes |
| Brand | FRIWO |

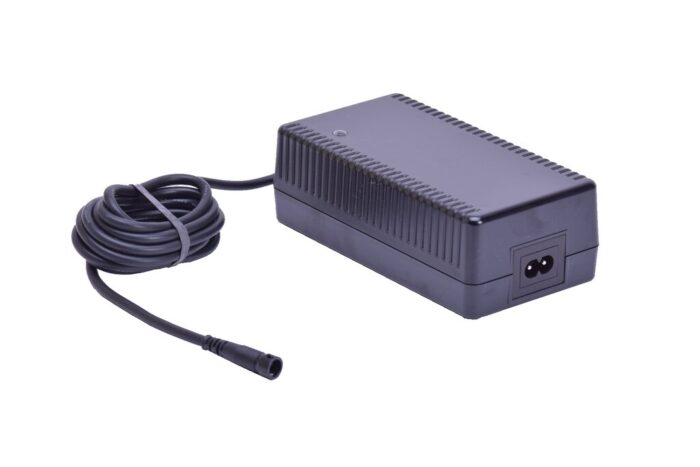

DT 80 Watt M
Product number:
7234
7234
DT 80 Watt M
–
More about the product
.
