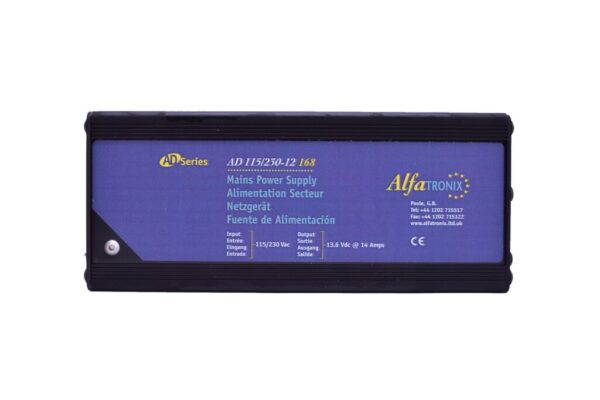

Alfatronix Power Supply AD 115/230V AC - 12V DC 14A

Product number:
AD11523012168

Alfatronix Power Supply AD 115/230V AC – 12V DC 14A

Delivery:

In stock
Will be shipped in 1-2 days

2.346,43  DKK

All prices are excl. VAT

AC-DC Desktop Power supply 12V DC

Input Auto select 85-135V AC and 170-265V AC
Output 13,6V DC – 168 Watt – 14A

Ideal for offices, portable site cabins, communication cabins, telephone exchanges, remote antennae sites, ships, oil rigs etc

Input: EU power cord
Output: 6,3mm push-on blade terminals
Ground: Stud with crimp eyelet

Fast installation with T-shaped mounting clip

Green LED indicates output

Alfatronix provides lifetime guarantee

> Read more
Input Voltage115/230V AC
Output Voltage12V DC
Ampere14A
Weight (kg)0.900
STORAGE TEMPERATURE-25°C - 100°C
OPERATING TEMPERATURE-25°C - 30°C
Humidity (%)95% max, non condensing
Efficiency (%)93/68/EEC The CE marking directive
ON diodeGreen LED
Certifications93/68/EEC The CE marking directive
StandardsEN60950, EN55022, EN61204-3
Length mm225.00
Width mm87.00
Height mm62.00
Mounting`Click and fit´ mounting clip
HousingAnodized aluminum, glass-filled polycarbonate
Output Connector6,3mm push-on blade terminals
Primary AdapterIEC-320 C14 socket, C13 terminated cordset

More about the product

AD SERIES

MAINS POWER SUPPLIES IN 12V, 24V & 48V CONFIGURATIONS

The AD Series units may be used to supply mobile radios and other appliances from AC mains used in offices, portable site cabins, communication cabins, telephone exchanges, remote antennae sites, ships, oil rigs etc. The units will accept either European 230V AC or US 115V AC inputs and are available as standard in 12V, 24V and 48V output configurations. Input is via a standard IEC-320 C13/14 power cord with UK, European or US mains plugs – please state your requirement.

FAST INSTALLATION

There’s nothing worse than a power supply lying around on the floor. The T-shaped mounting clip, common to many Alfatronix products, allows the power supplies to be installed quickly and simply in many out of the way locations, such as underneath desks or on walls. The 3 point ‘T’ clip can be fitted securely, even on uneven surfaces, quickly and simply, and then the power supply simply ‘clips’ in place.

BATTERY CHARGING REQUIRED?

A fixed voltage battery charging facility is also available with the supplementary loom; P/N AD BB loom. For dedicated battery charging units, please check out our IC Series Intelligent Battery Chargers.

FULL CIRCUIT PROTECTION

The AD Series supplies have transient, overload and overheat protection for reliable operation even in the toughest environments.

HOW TO READ THE PRODUCT CODING AD11523012168

AD AC input & DC output
115230  Denotes auto select US or EU AC input voltage
12  12V nominal – suitable for charging 12V lead acid batteries
168 168W capacity unit



Power Supplies AC-DC
