Primary Adapter | FRIWO Exchangeable mains plug system |
---|---|
Frequency | 50-60 Hz |
Efficiency (%) | 80% typ. at full load |
EMC | EN55022, EN55024, 60601-1 |
Output tolerance (%) | ± 2% |
OPERATING TEMPERATURE | 0°C - 45°C |
STORAGE TEMPERATURE | -40°C - 70°C |
Humidity (%) | 10% to 95% non condensing |
Standards | IEC 60601-1 |
MTBF | 200.000 hours |
Leakage current (μA) | Low leakage ≤ 10 μA |
Standby loss | Low standby power |
Short Circuit Protection | Continuously short circuit proof |
Output Connector | FRIWO Universal output plug system |
IP class | IP 40 |
ON diode | Yes |
Protection class | Class ll |
Means of protection | 2xMOPP |
Medical Approved | Yes |

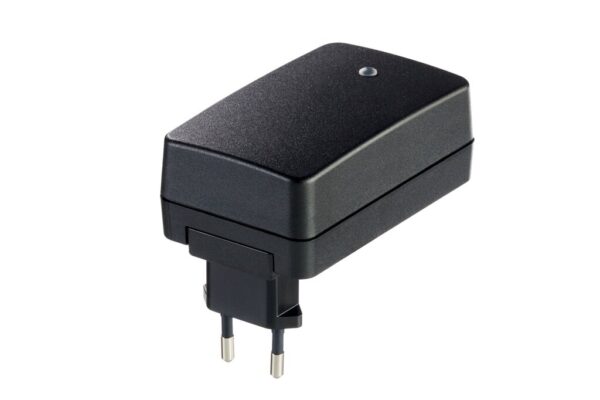

FOX 30 Watt XM
Product number:
7214
7214
FOX 30 Watt XM
–
