| Input voltage | 24V DC |
|---|---|
| Output Voltage | 12V DC |
| Ampere | 12A |
| Output Power | 144W |
| Efficiency (%) | Typically 85% |
| OPERATING TEMPERATURE | -25°C - 80°C |
| STORAGE TEMPERATURE | -25° - 100°C |
| Humidity (%) | 100% |
| IP class | IP65 |
| Output Connector | 4 Wires (1m in length) stripped and tinned for individual connection |
| ON diode | 1 |
| Product Number | Limited by current sensing circuit |
| Certificates | 2004/108/EC, 2009/19/EC & reg 10.04, 93/68/EEC, CE, E |
| Isolation | 1 |
| Weight (kg) | 0.590 |
| Length mm | 167.00 |
| Width mm | 87.00 |
| Height mm | 50.00 |

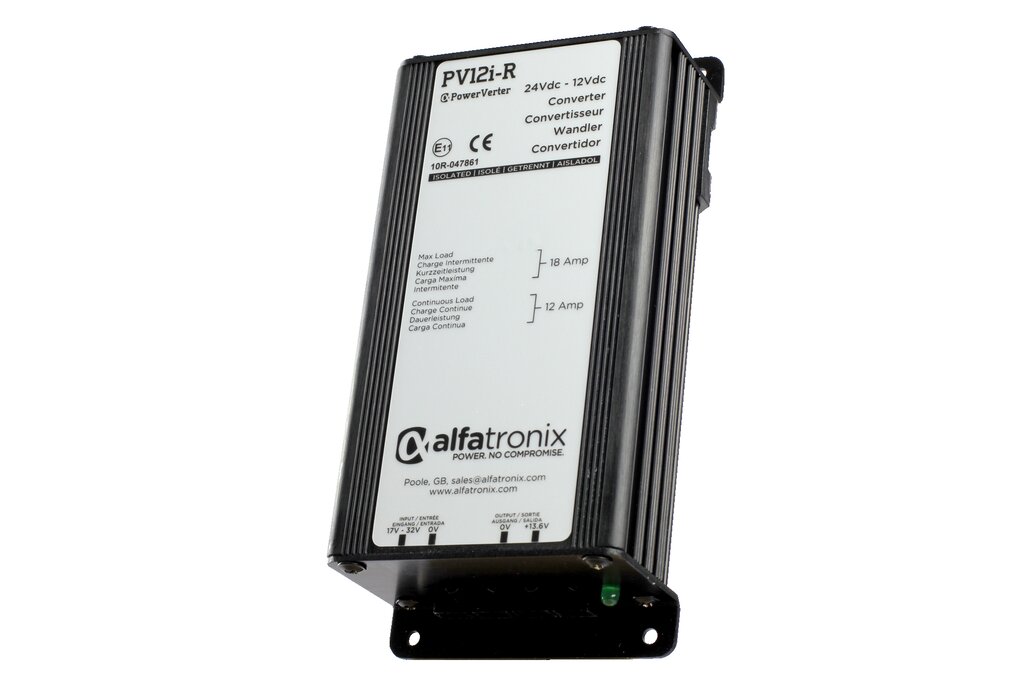

Alfatronix Converter PV 24V DC - 12V DC 12A Ruggedised
Product number:
PV12IR
PV12IR
Alfatronix Converter PV 24V DC – 12V DC 12A Ruggedised
Delivery:
Please contact us for delivery
Place order and complete checkout. We provide the leadtime within 24 hrs.
Powerverter DC-DC Converter
24V DC – 12V DC, Isolated and Ruggedised
Input voltage range 17-32V DC
Output voltage 13,6V DC
144 Watt 12A/18A
Ruggedised casing for harsh environments
Easy mount with “Click’n’ Fit” mounting clip
Protected from dust, water and impact to IP65
ALFATRONIX provides lifetime guarantee
More about the product
POWERVERTER IP65 SERIE ISOLATED AND RUGGEDISED
Harsh Environments
These products offer the same great electrical characteristics as our PowerVerter and DD Series, but are provided in ‘Ruggedised’ casings for use in harsh environments. Using the well-known Ingress Protection System, the product range has been tested and subjected to demanding environmental conditions and awarded a rating of IP655.
All Ruggedised PowerVerters are enclosed in a durable aluminium extrusion. The low mass Surface Mount Technology components are also less prone to damage from vibration and shock, further increasing the reliability of the units.
Innovative Technology
Utilising the same GORE-TEX® technology that is used in extreme outdoor clothing, the Ruggedised range is able to breathe freely, without compromising the water tight and dust tight seal. This free-flow of air ensures that the pressure remains equal inside and outside the unit thus allowing it to operate within a large temperature range and at varying altitudes safely.
Fast Installation
All the products fit onto a ‘Click ‘n’ Fit’ mounting clip which is fixed in three points allowing it to be mounted on uneven surfaces. It is easy to fit the clip into awkward places, and then simply click the unit into position.
Anti-Vibration
As well as being dust and water tight to IP65 the units are vibration resistant. They have an anti-vibration cable gland fitted into a hexagonal recess to prevent unwanted knocks from loosening it, so they can be fitted into rugged environments care-free.
Additional Features
The RU range has the same features as the standard PV & DD range, but in addition, they also offer the following benefits:
· Dust, water and impact resistant to IP655
· Breathable vent to prevent unwanted build up of pressure
· Anti-vibration cable gland
· Supplied with 1m of cable as standard
Product Variants
Many PowerVerter-RU and DD-RU Series products can be configured with alternative output voltages etc, for specialist applications. Please call our sales team to discuss your requirements.
